imageDROK 12v to 5v Step Down Converter Pack of 2 Waterproof DC to DC Buck Converter 835v to 5v 3A 15W Voltage Regulator Power Supply for Camera Car RV DIY Project

DROK 12v to 5v Step Down Converter Pack of 2 - Waterproof DC to DC Buck Converter 8-35v to 5v 3A 15W Voltage Regulator Power Supply for Camera Car RV DIY Project

-40%

DROK 12v to 5v Step Down Converter Pack of 2 – Waterproof DC to DC Buck Converter 8-35v to 5v 3A 15W Voltage Regulator Power Supply for Camera Car RV DIY Project

Name: DROK 12v to 5v Step Down Converter Pack of 2 - Waterproof DC to DC Buck Converter 8-35v to 5v 3A 15W Voltage Regulator Power Supply for Camera Car RV DIY Project
SKU: 17606712166237
Availability: InStock

Original price was: $14.99.Current price is: $8.99.

SKU: 17606712166237 Category: Accessories

Description
Reviews (0)

Description

PARAMETER — input voltage DC 8V-35V (12V 9V); output voltage DC 5V; output current 3A; output power 15W.

APPLICATION — 12v to 5v step down converter. Can be used for car audio, LED display; motor, speaker; auto map navigator; hard disk player; media; electric fan; toy cars; air conditioning; solar energy, etc.

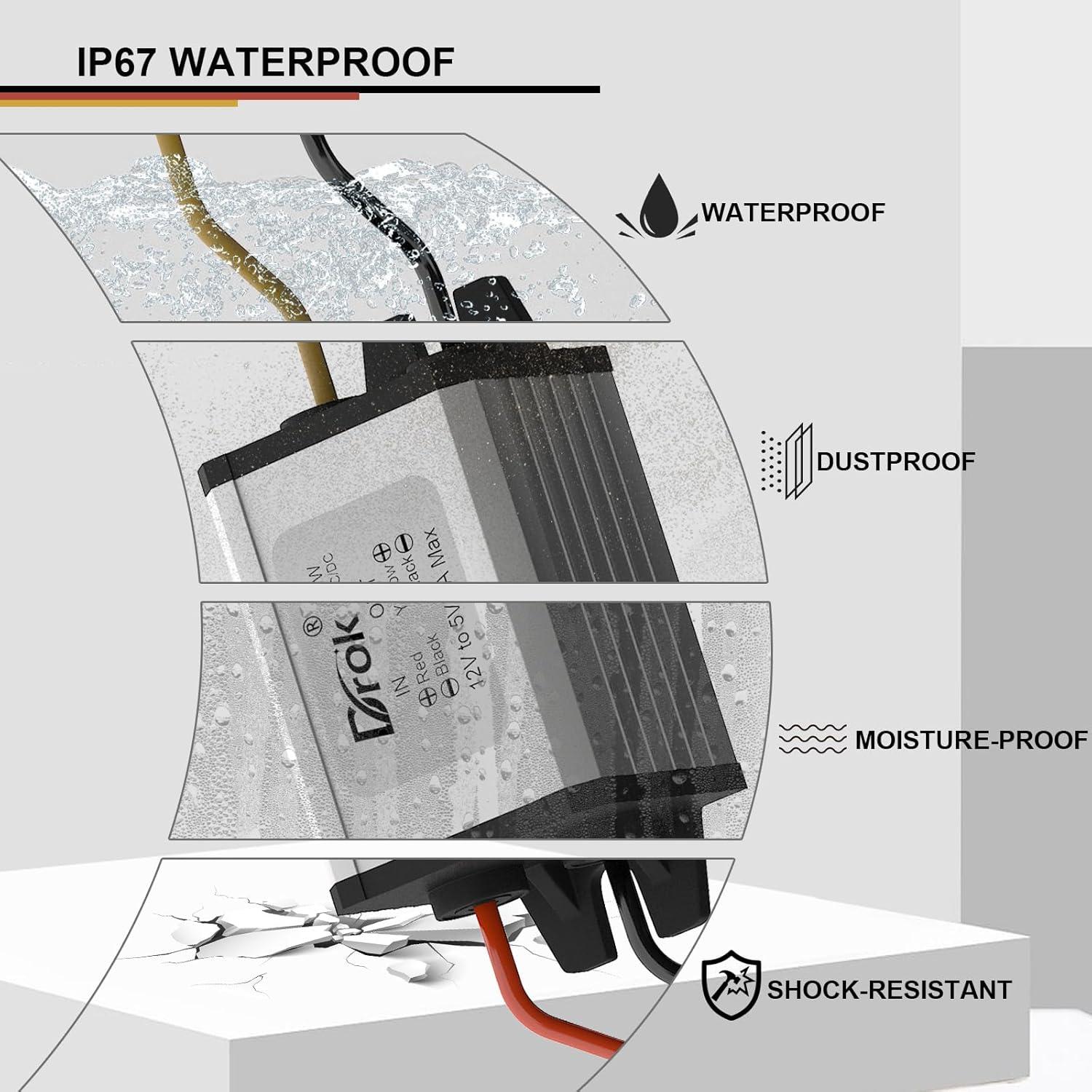

PROTECTION — over-current protection; over-temp protection; input reverse connection protection; short-circuit protection; waterproof; dust-proof; moisture-proof; shock-proof.

CONVERSION EFFICIENCY — over 95% max.

FEATURE — high conversion efficiency, low heat generation; aluminum case, good heat dissipation, high safety.

DROK DC/DC Step Down Voltage Regulator 12V to 5V Converter

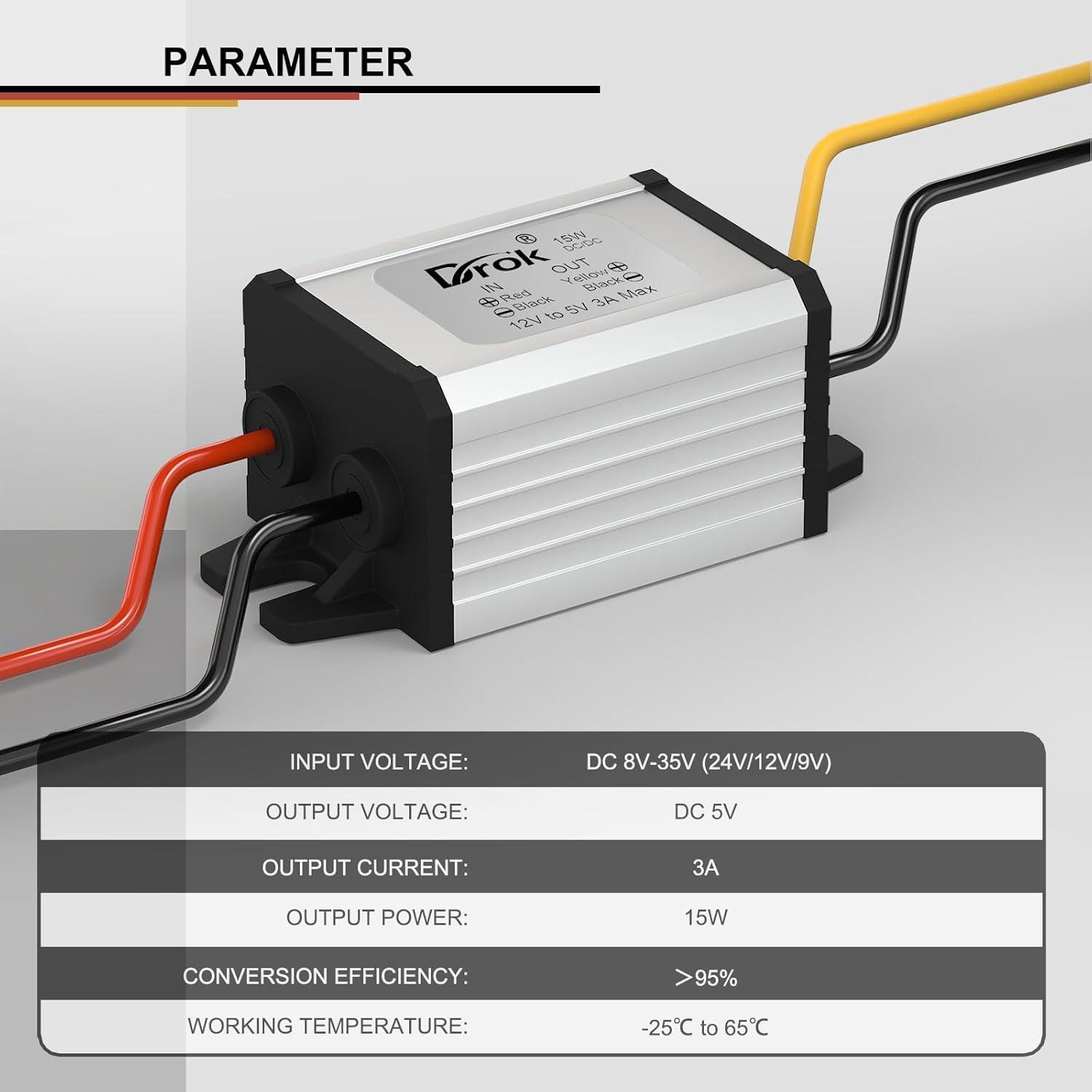

Parameter:
Input voltage: DC 12V/9V (8V-35V)
Output voltage: DC 5V
Output current: 3A
Output power: 15W
Conversion efficiency: over 95% max.
Working temperature: -20℃~80℃

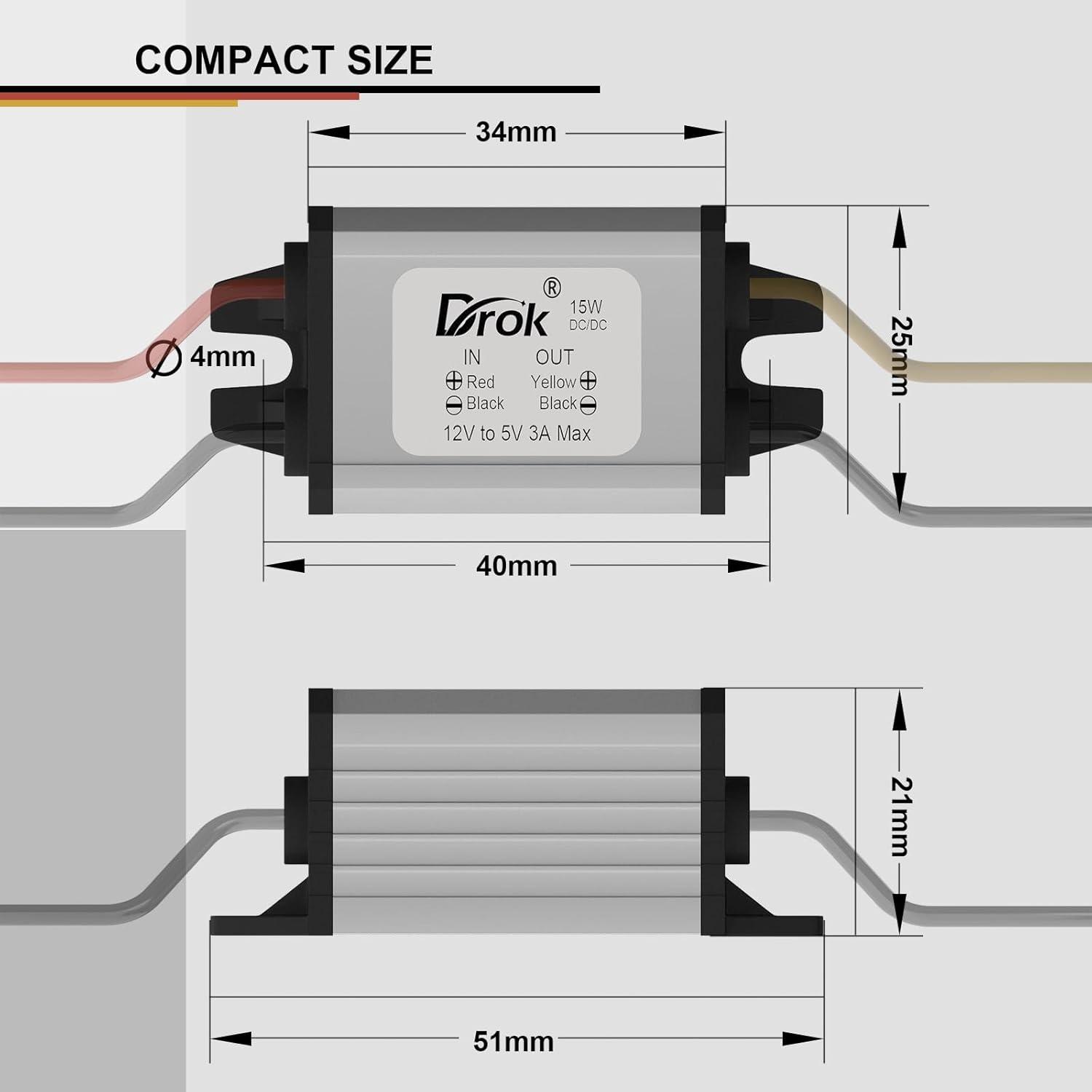

Dimension: 34*25*21mm/1.34*0.98*0.83 inch
Mounting hole distance: 40mm/1.57 inch
Mounting hole diameter: 4mm/0.15 inch
Installation cable length: 13-14cm/5.11-5.51 inch
Cooling: natural cooling

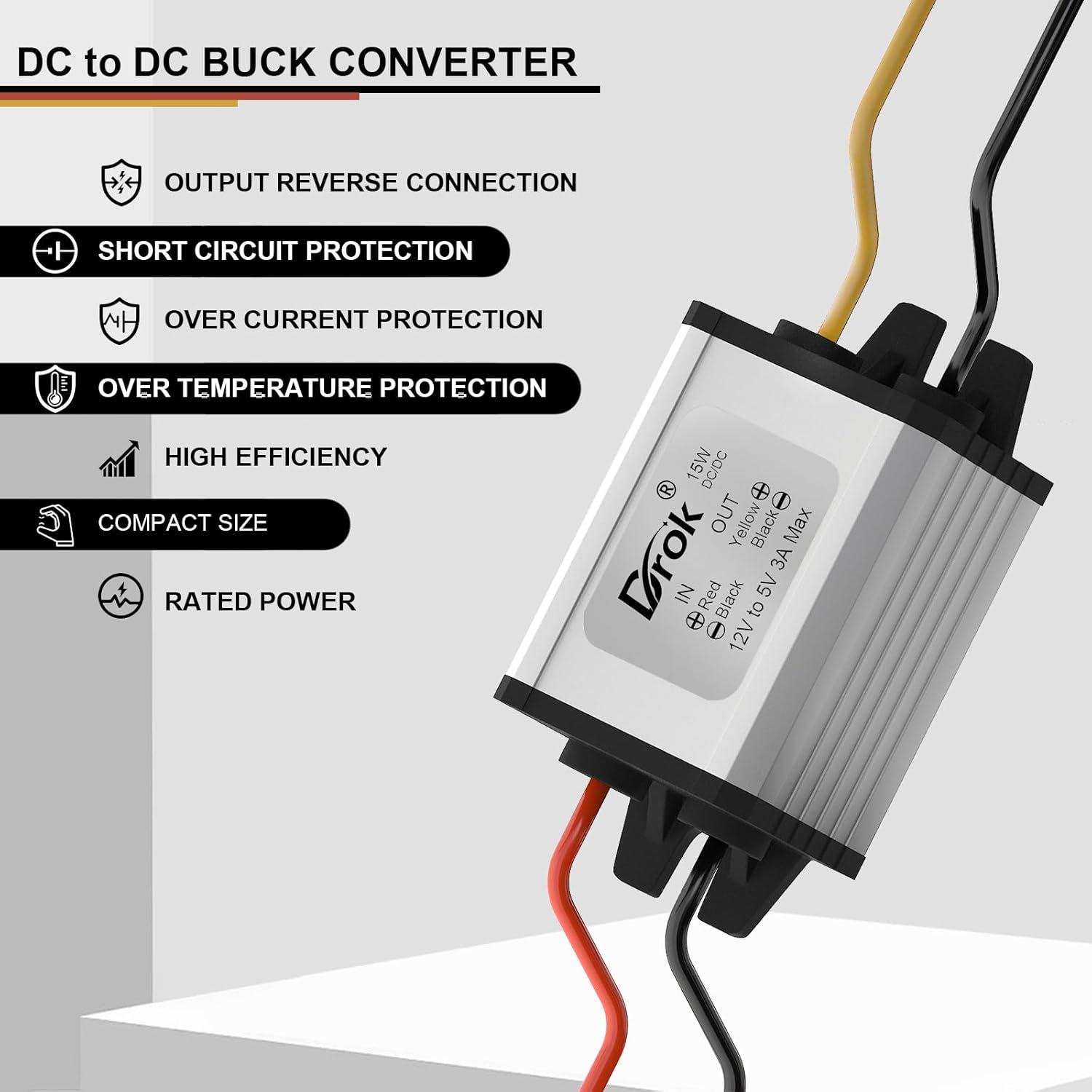

Protection:
Over-current protection;
Over-temp protection;
Input reverse connection protection;
Short-circuit protection

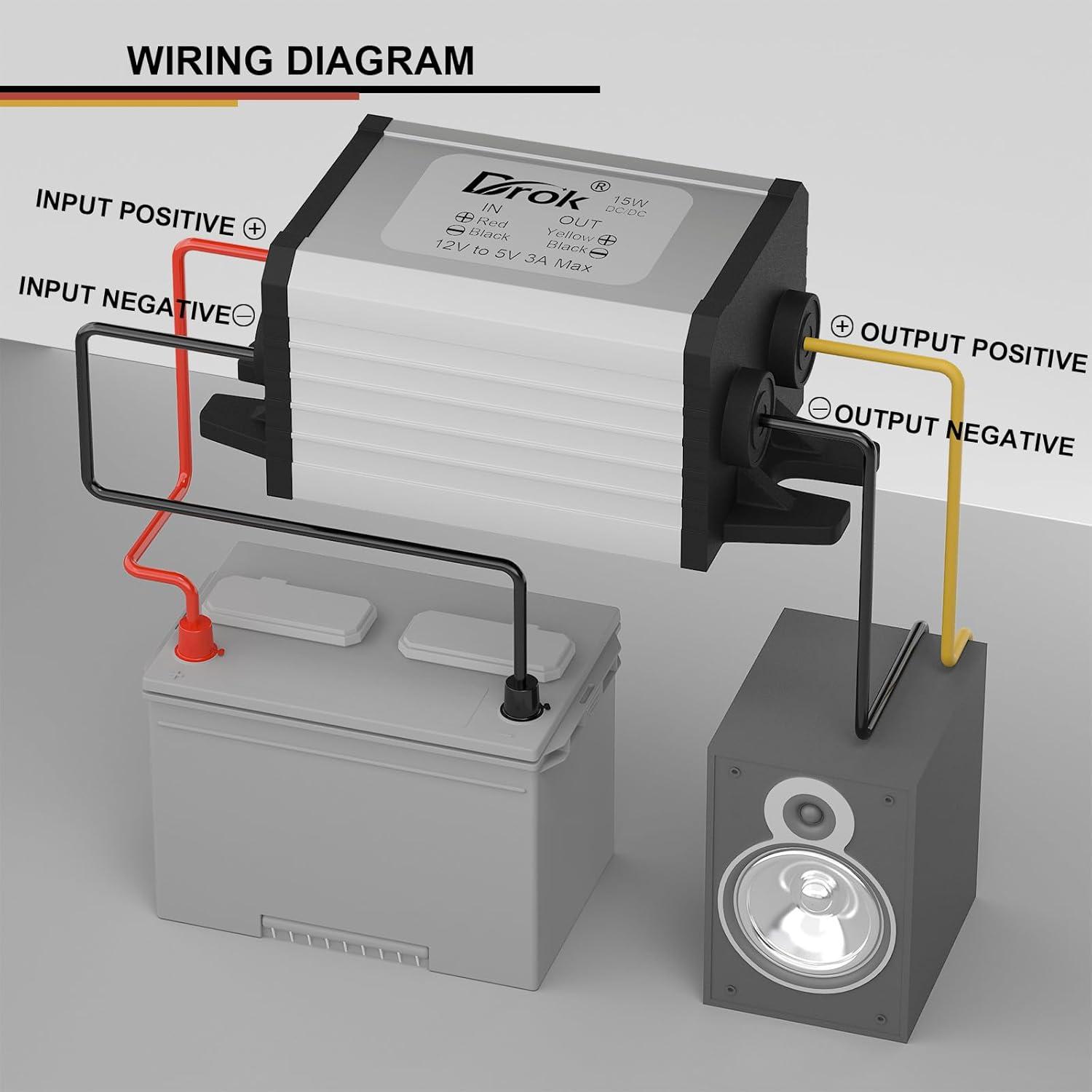

Wiring:
Input:
Red wire: input +
Black wire: input –
Output:
Yellow wire: output +
Black wire: output –

Note:
Input voltage cannot exceed 22V, otherwise the module will burn.

Package Included:
1x Step Down Converter
