Description
Parameters — DROK step up converter input voltage range 5V-11V, output voltage 12V, can be used to convert 6v to 12v, output current 1A, output power 12W, conversion rate more than 93%.
Application — the voltage regulator module can be applied to car audio, radio, walkie-talkie monitoring, electric fan, solar panel, photovoltaic panel, motors, industrial equipment etc.
Features — our power supply is waterproof, dustproof, moistureproof, shockproof, can be applied to all kinds of harsh working environment.

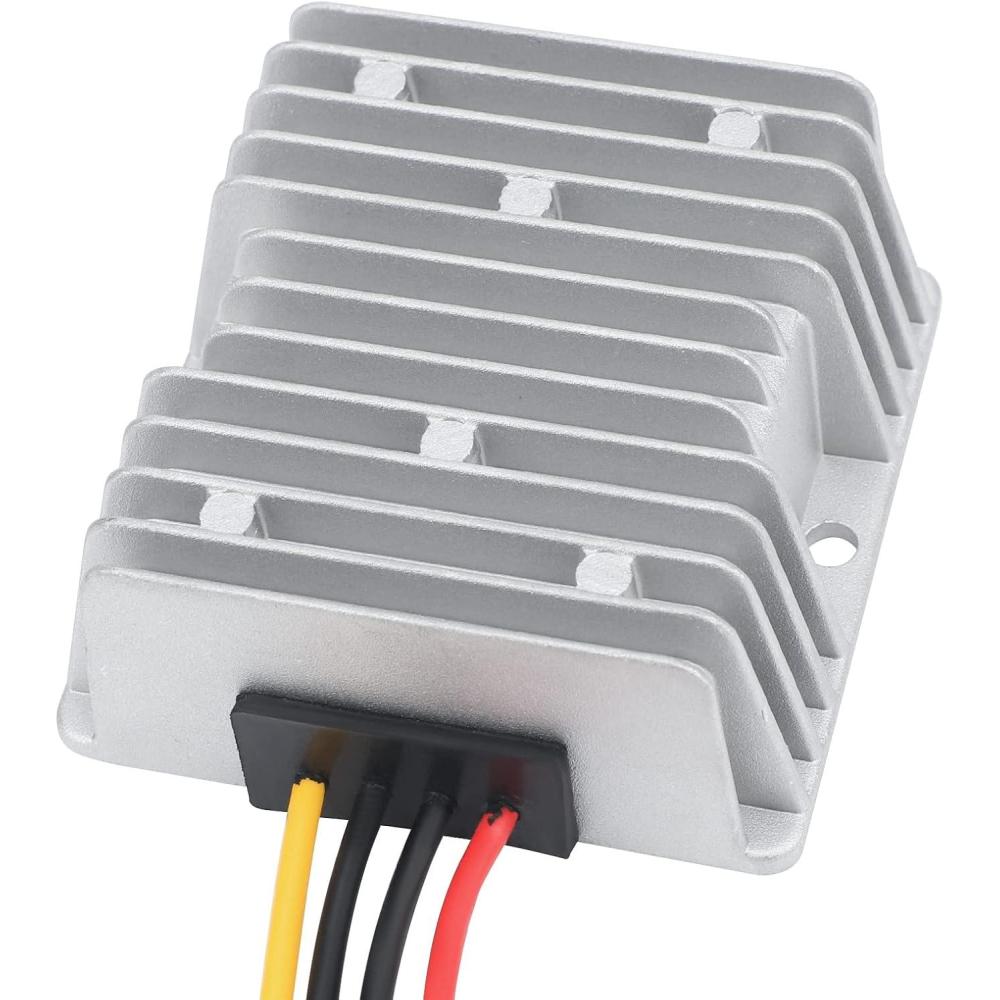

Aluminum Shell — the stepup transformer adopts Aluminum shell, which will be more sate and easy to cooling than plastic shell.
Protection — the boost converter is designed with over-current protection, overheat protection, instant high voltage protection.

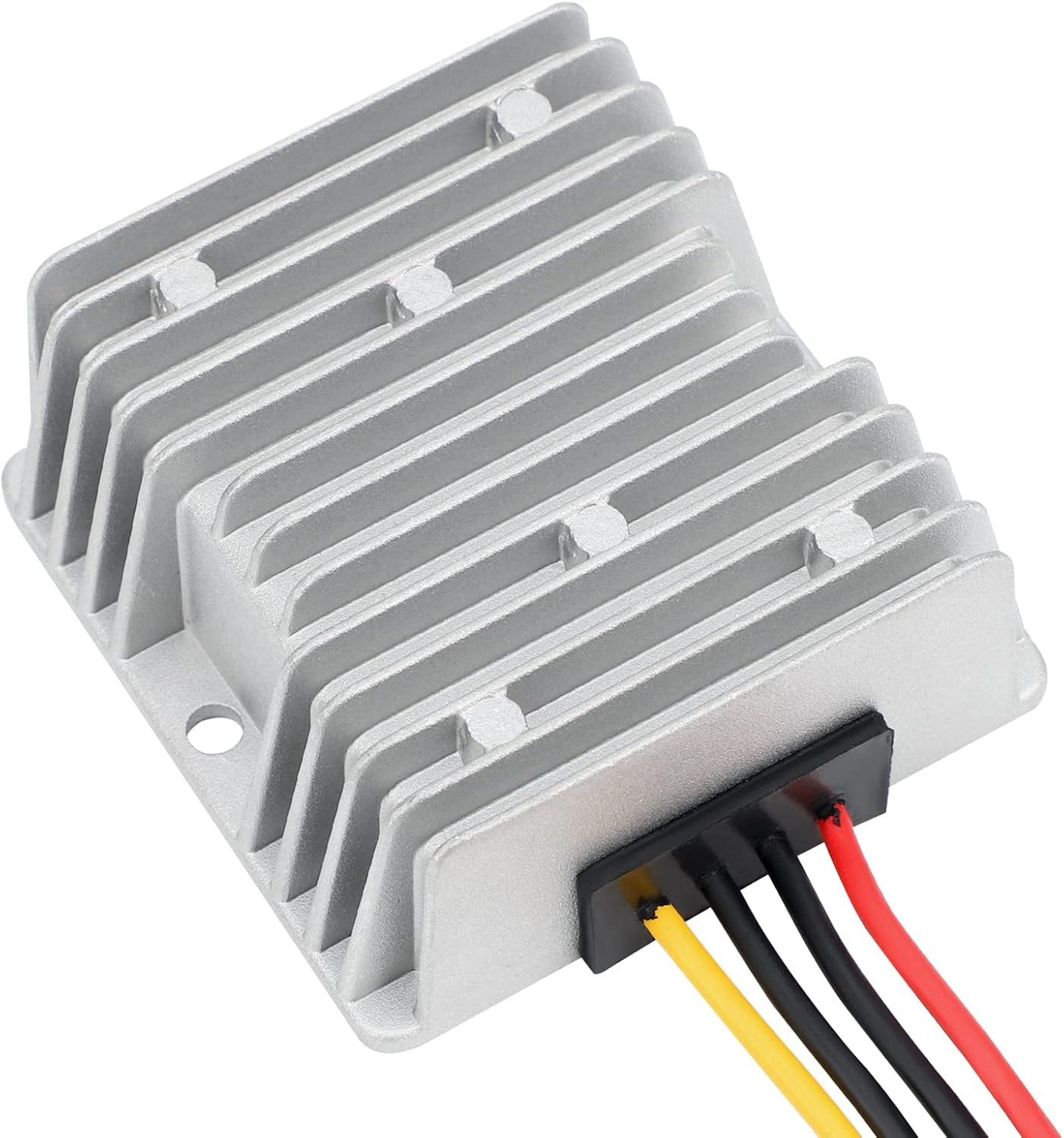

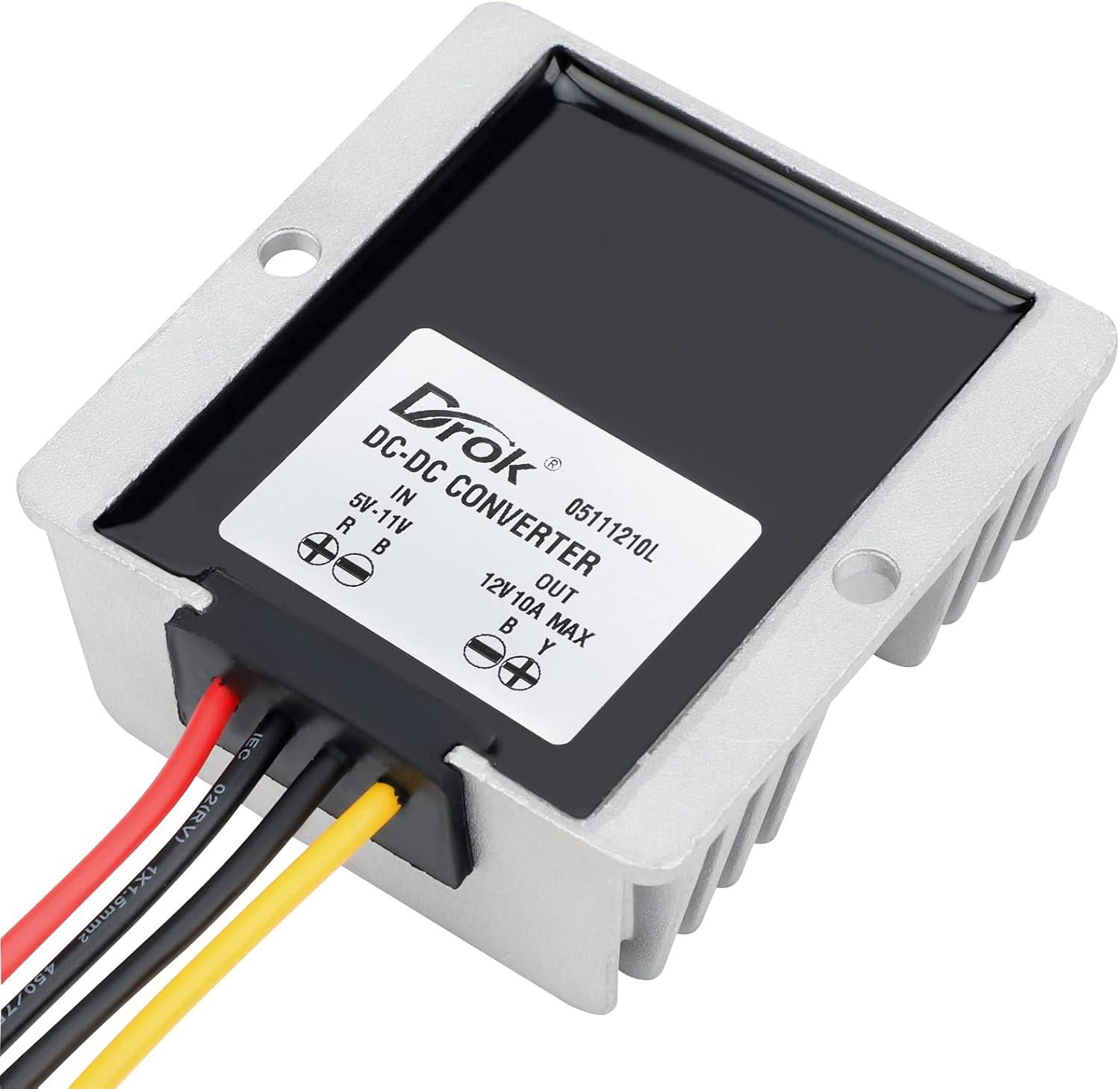

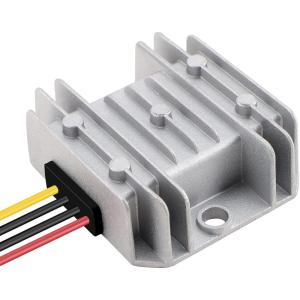

DROK 12V 1A Boost Converter
Parameters:
Input voltage: DC 5-11V
Output voltage: DC 12V
Output power: 12W
Output current: 1A
Continuous output current: 1A
Transfer efficiency: over 93%
Working temperature: -40 to +85 ℃

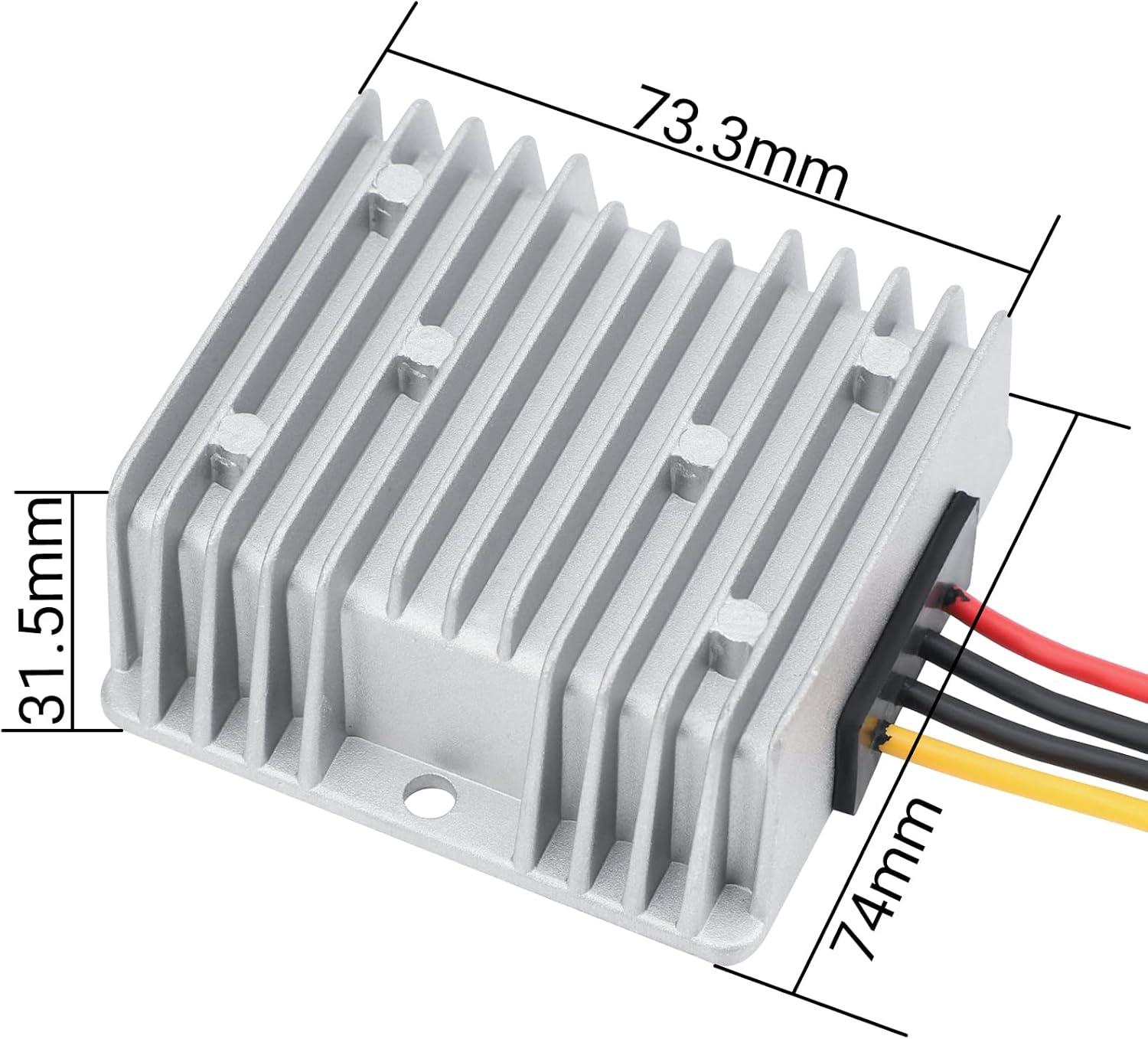

Dimension: 66*60*22mm / 2.60*2.36*0.87in
Mounting wire length: 13-14cm / 5.12-5.51in

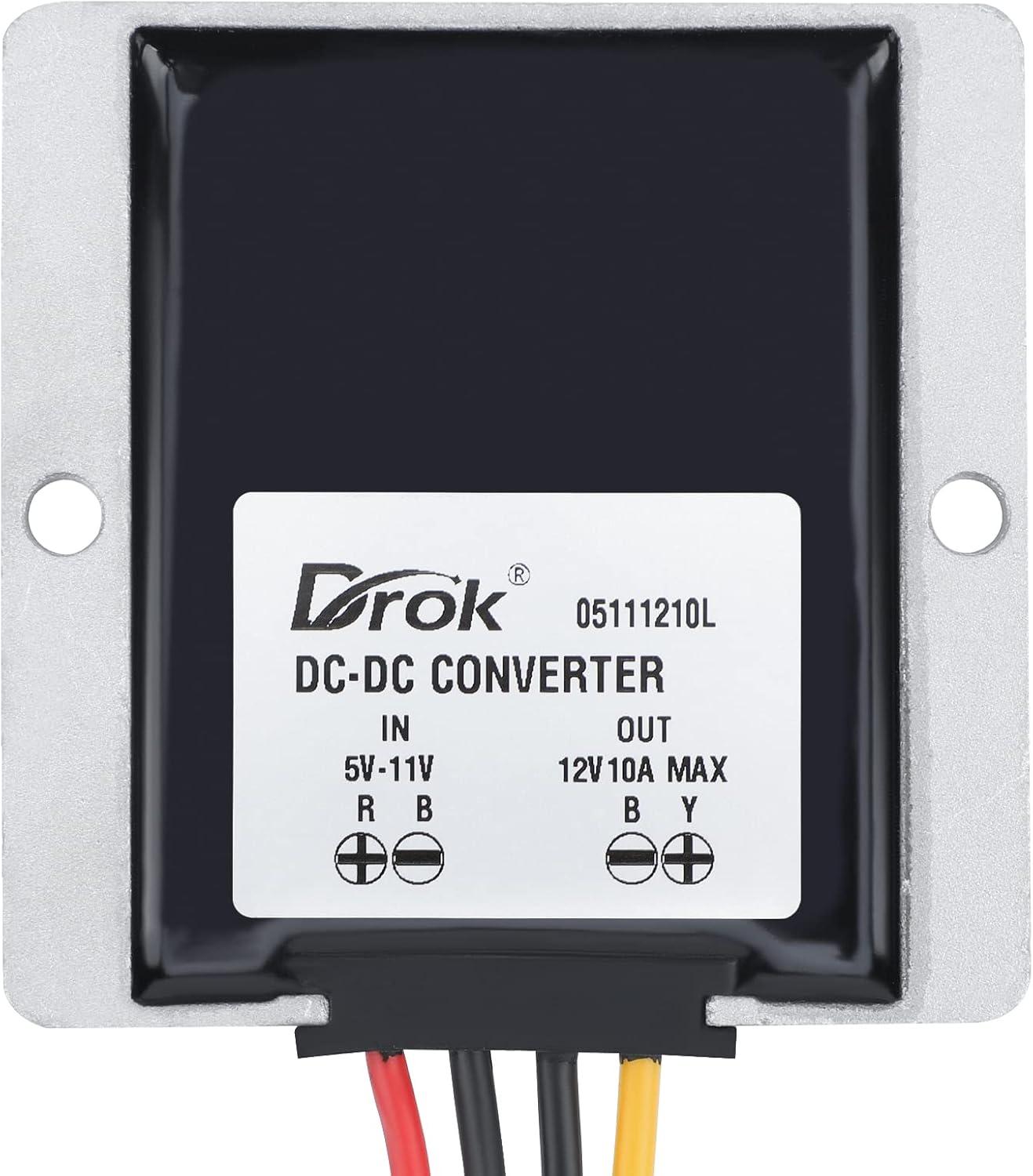

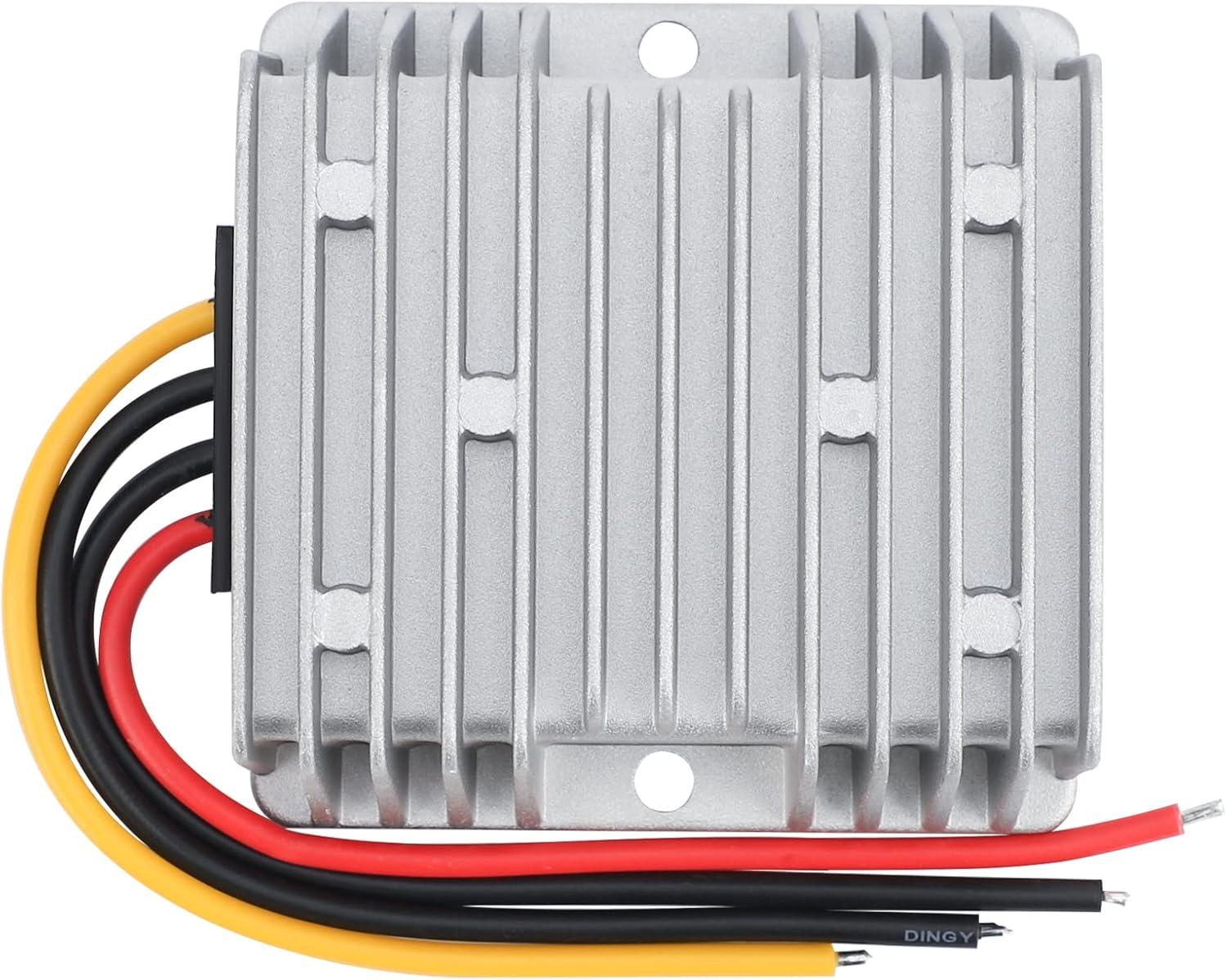

Wiring instruction:
Input side: red wire +, black wire –
Output side: yellow wire +, black wire –
Package included:
1x DC 6V to 12V 1A Step Up Converter
