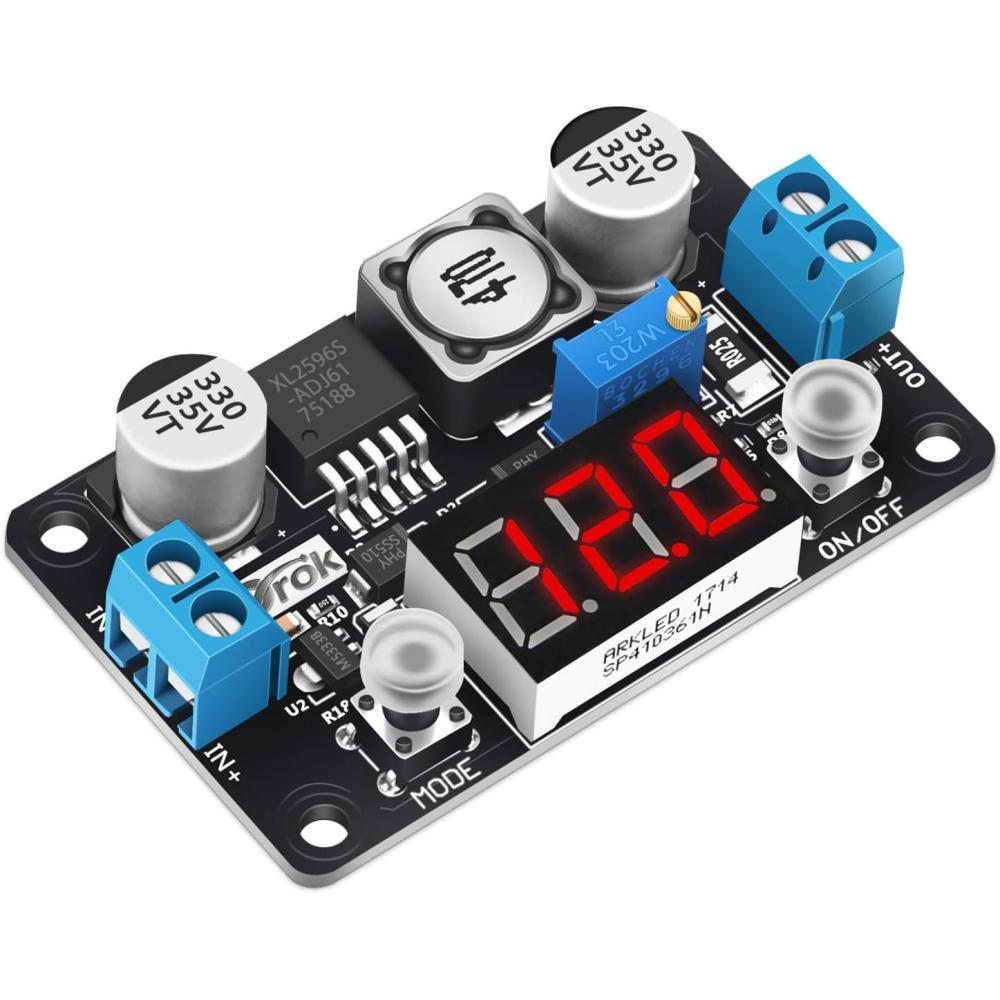

DROK Buck Converter 24v to 5v, DC 4-32V to 1.25-30V 3A Adjustable Step Down Module, LM2596 Voltage Regulator Board, 12V to 5 V LED Power Supply Transformer

Description

Parameters:

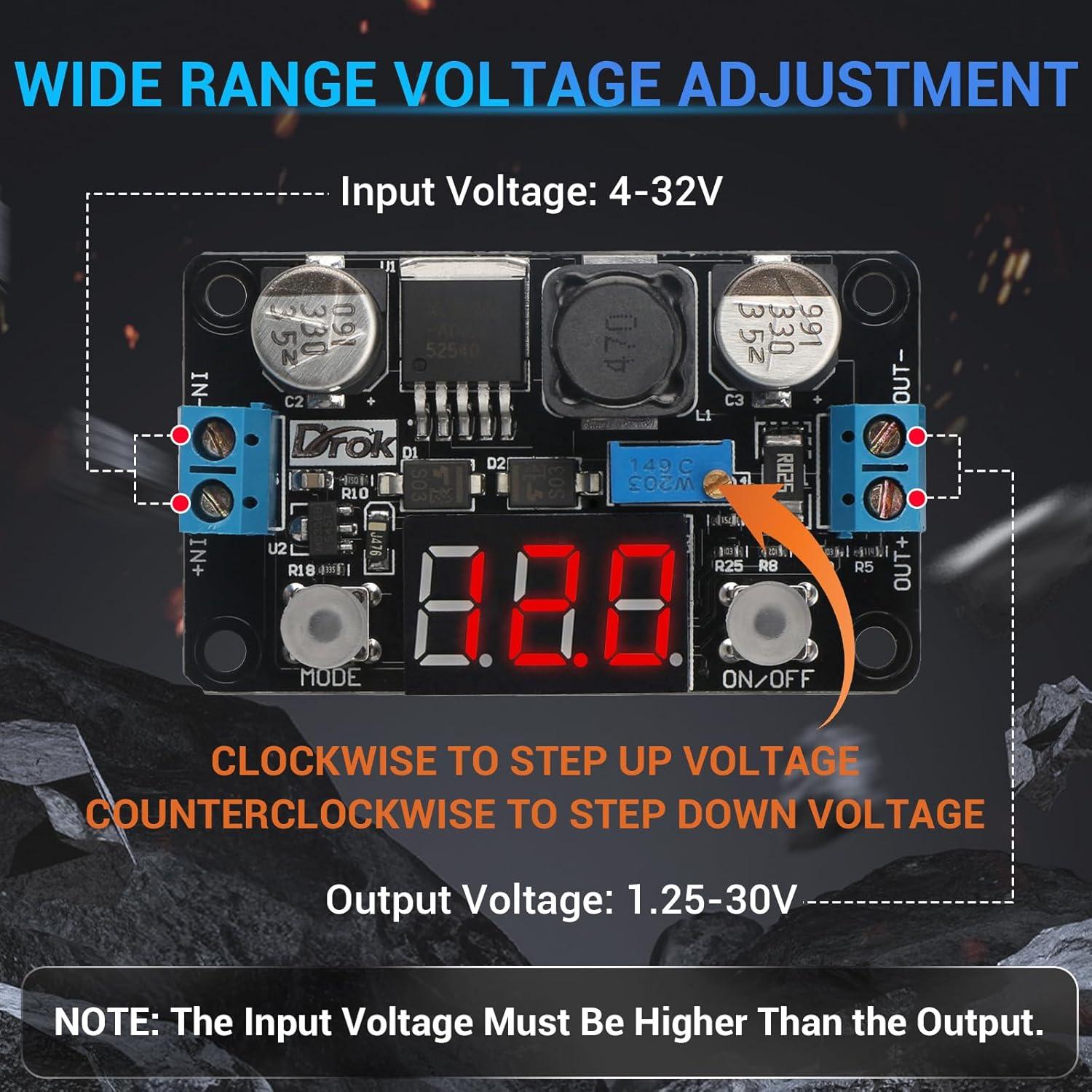

Input Voltage Range: 4.0V-32.0V
Output Voltage Range: 1.25V-30.0V (buck mode 2V drop)
Maximum Output Current: 3A (peak current)
Continuous Operating Current: 1.5A (total output power within 20W)
Product Weight: 24g
Voltage Measurement Accuracy: ± (1% + 2 digits)
Current Measurement Accuracy: ± 2 digits

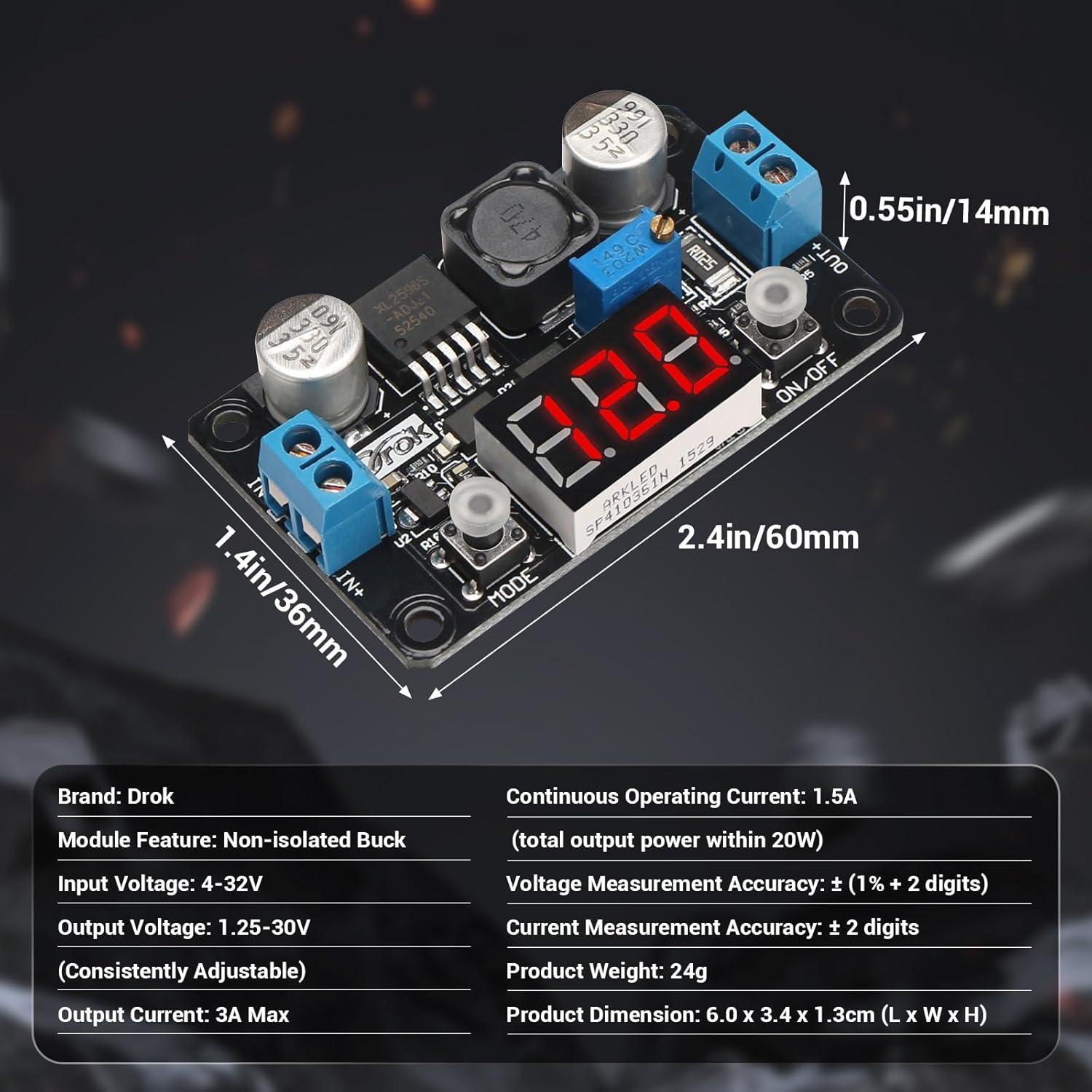

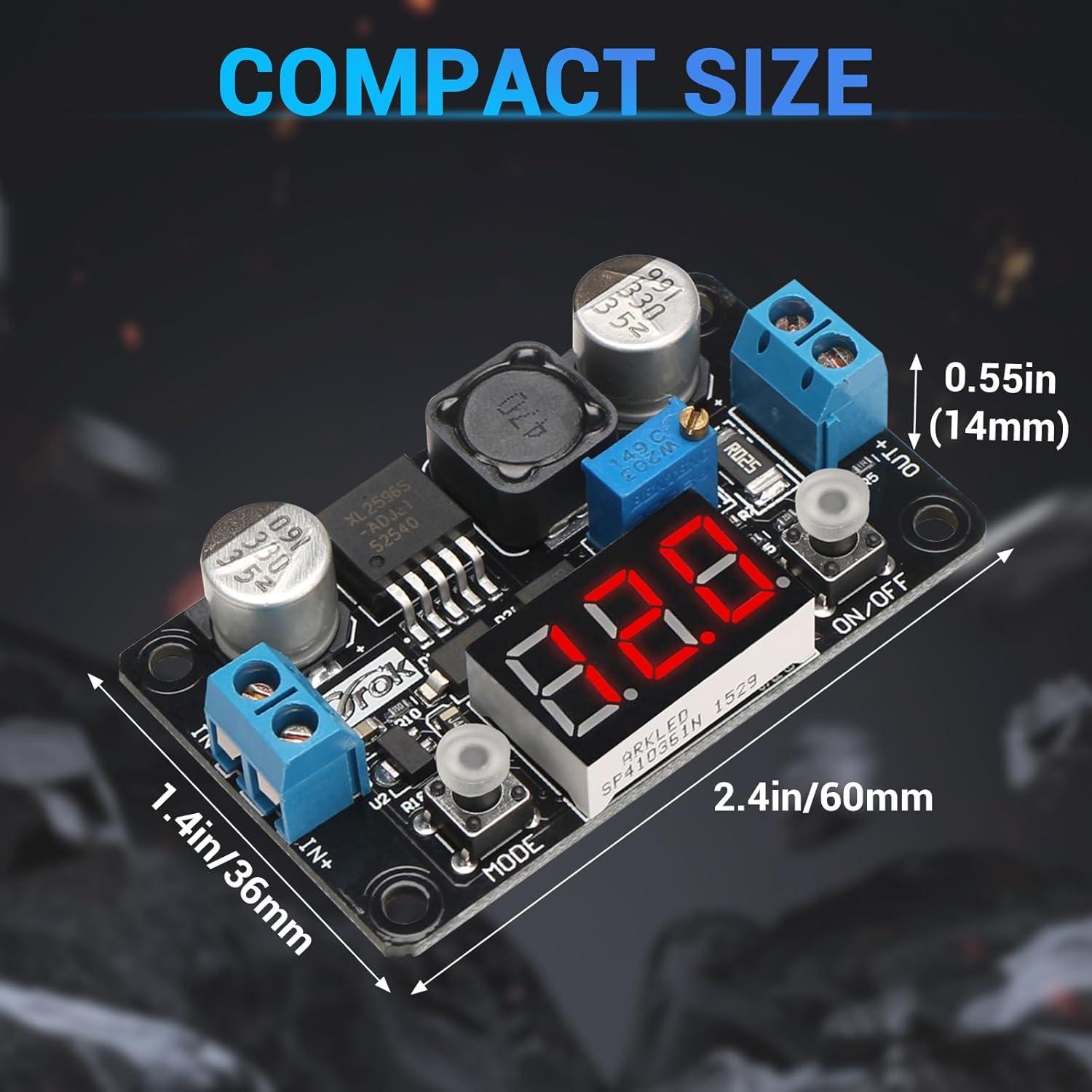

Product Dimension: 6.0 x 3.4 x 1.3cm (L x W x H)

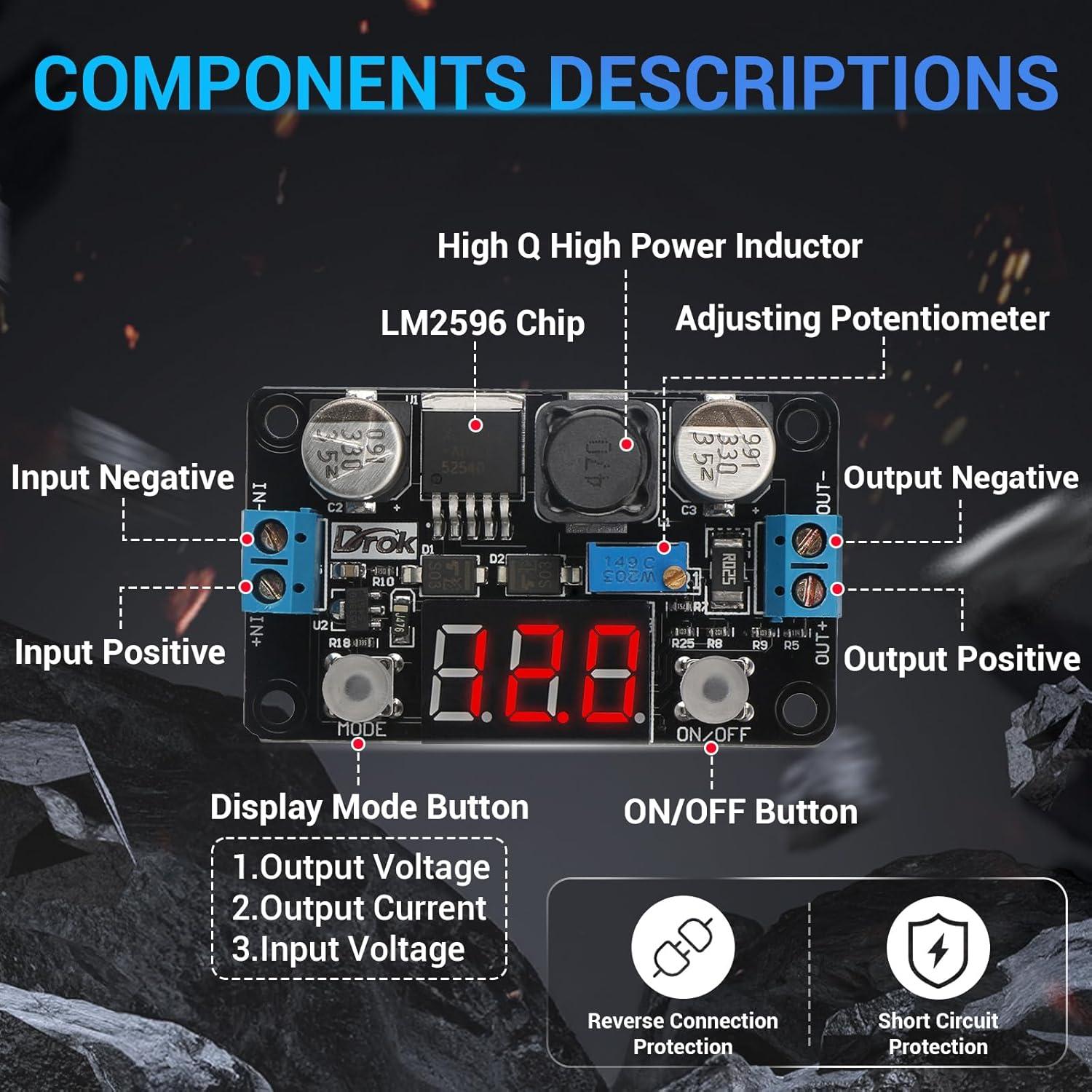

Features:
Input voltage display
Output voltage display
Output current display
Module switch output
Reverse polarity protection, short circuit protection

Instructions: IN +：Input
Positive IN-：Input
Negative OUT +：Output
Positive OUT-：Output Negative
1. ON / OFF button is for controlling the output voltage, press it to alternately turn on or off the output, and it will automatically memorize the default switch status.
When the output is off, the digital tube will display OFF.
2. MODE button is for mode control, press it to circularly display output voltage, output current, input voltage, and it will automatically memorize the default display mode.

Package Includes: 1 x Buck Converter
