DROK DC Buck Boost Converter, 9-36V to 12V 5A 60W Step Up Step Down Converter, 24V 12V DC Power Supply, Adjustable Voltage Regulator for Solar Panels RV(9-36V to 12V 3A)

Description

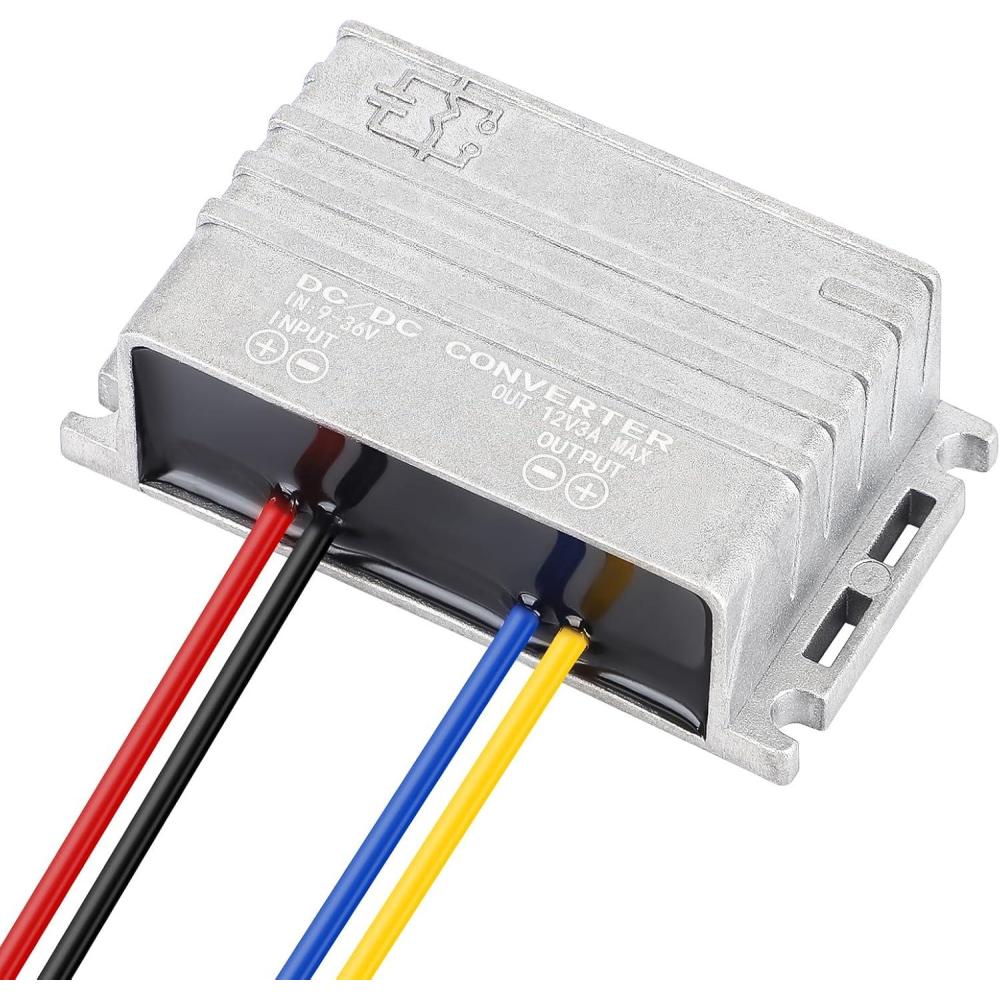

DROK DC to DC 9-36V to 12V Buck Boost Converter

Technical Specification:
Input Voltage: DC 9V-36V (9V 12V 24V 36V)
Output Voltage: DC 12V
Output Current: 5A
Output Power: 60W
Conversion Efficiency: >90%
No Load Voltage Range: Set voltage ±2%
Load Regulation: ±3%
Quiescent Power Dissipation: <＜20mA
Operating Temperature: -25~65℃
Waterproofing Grade: IP67

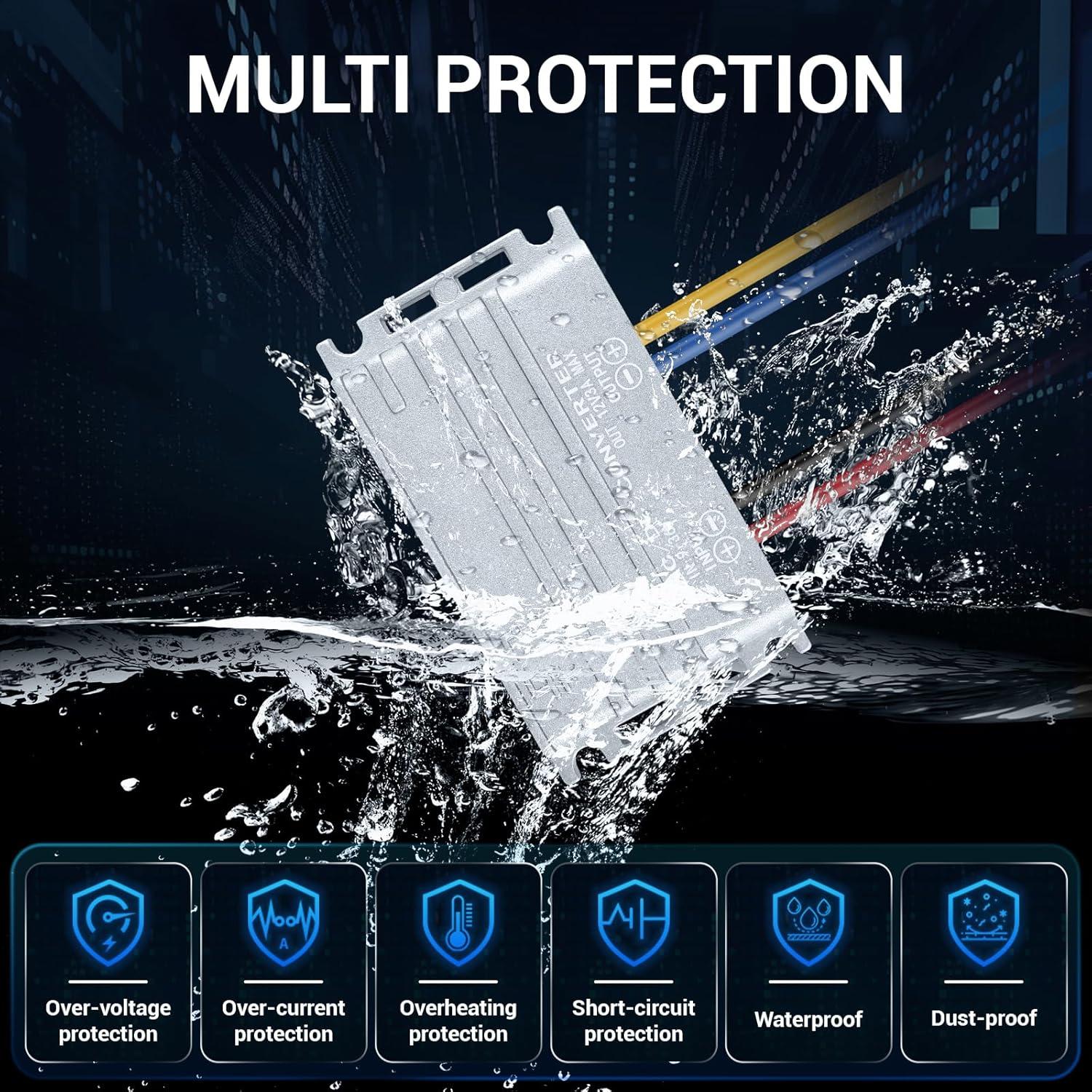

Over-current Protection: Yes
Over-voltage Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: Yes

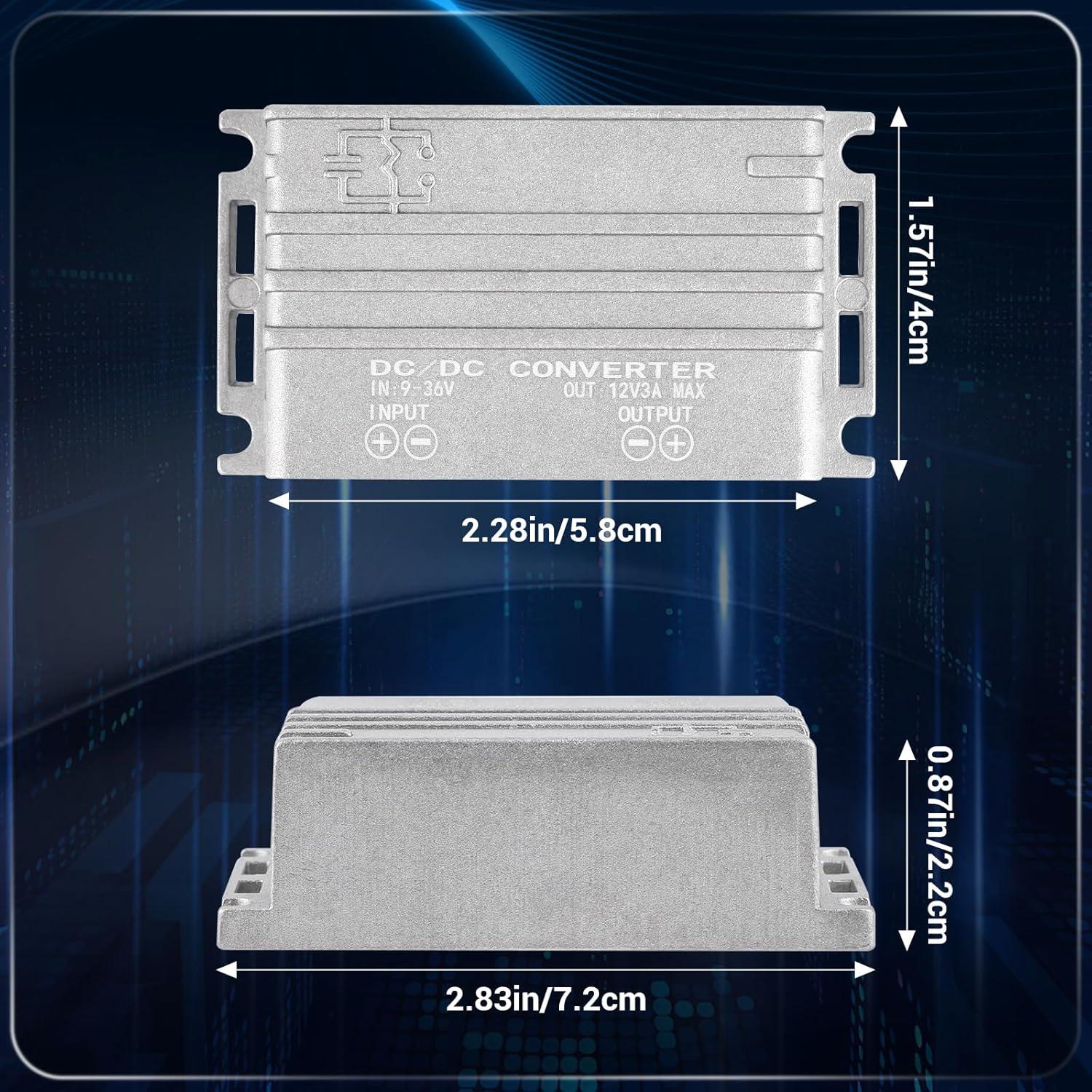

Dimension: 2.83*1.57*0.87 inch

Note:

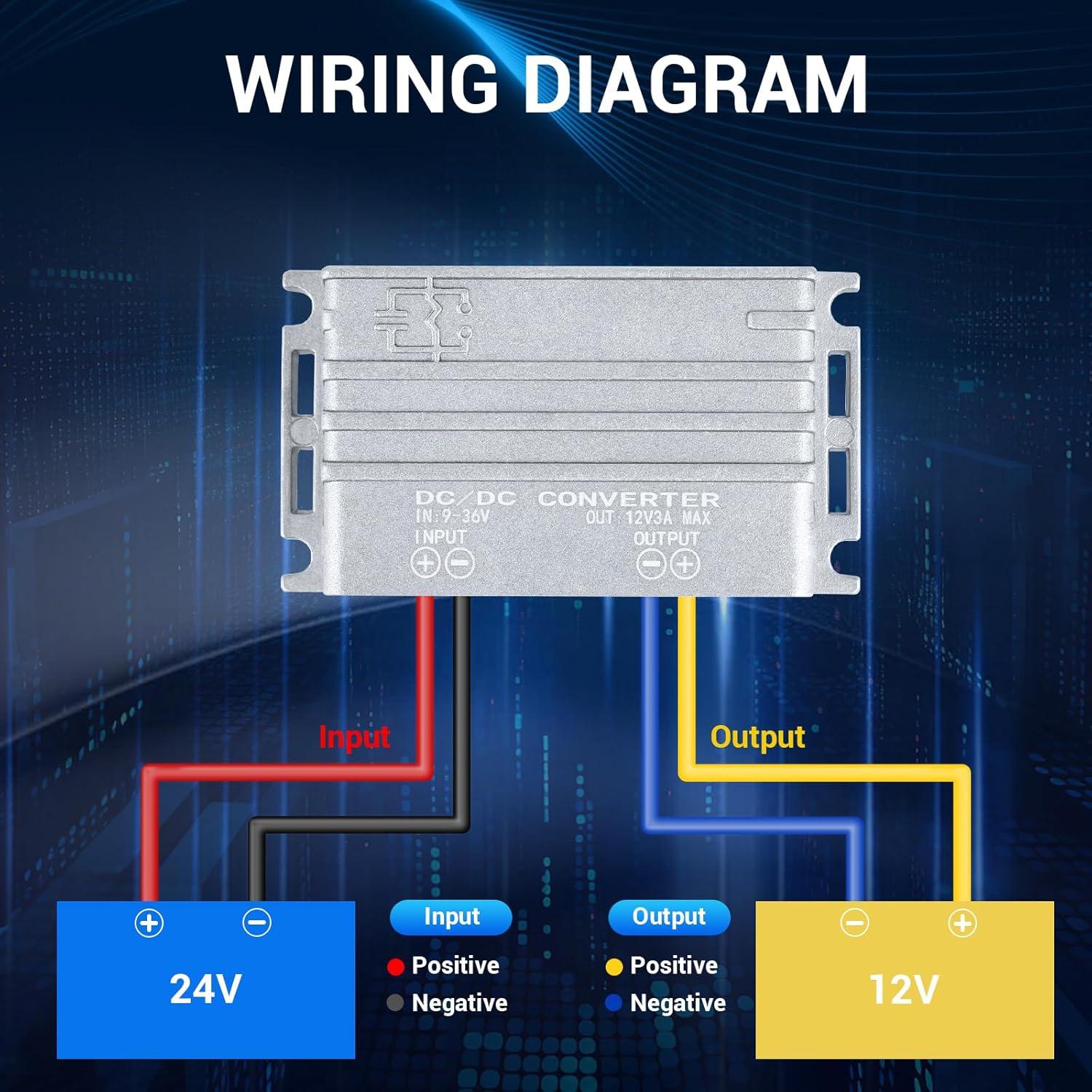

1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.

Package Included:
1x DC to DC Converter
