Description
DROK DC step down converter input voltage is 9v-36v, output voltage is 5.2V (5V-5.3V available according to your input voltage).

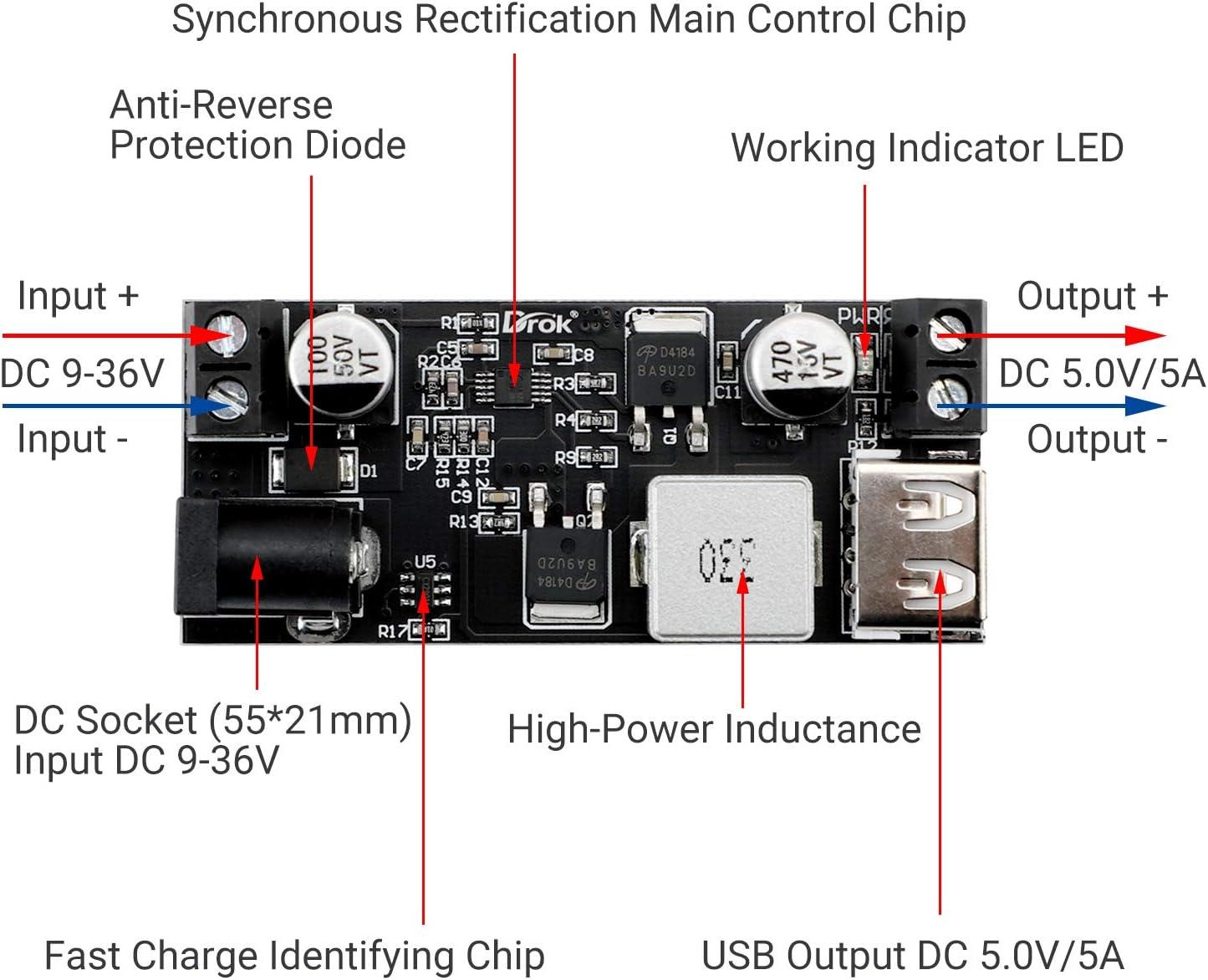

The step down regulator adopts synchronous rectification scheme to provide wide voltage range, large current and high efficiency.
Our buck voltage regulator is user-friendly, accompany with DC interface and connecting terminals, make it easier to be connected to different devices.
The voltage reducer is with USB interface and quick charge identifying chip, and is compatible with all kinds of smart phone.
Note: Input different voltage will output different power: input DC 9-24V, output 5.2V/6A/30W; input DC 24-32V, output 5.2V/5A/25W; input DC 32-36V, output 5.2V/3.5A/18W.
DROK 36V/24V/12V to 5V Step Down Converter
Parameters:
Input voltage: DC 9V – 36V
Output voltage: 5.2V
Input different voltage will output different power:
DC 9-24V, Output 5.2V/6A/30W
DC 24-32V, Output 5.2V/5A/25W
DC 32-36V, Output 5.2V/3.5A/18W

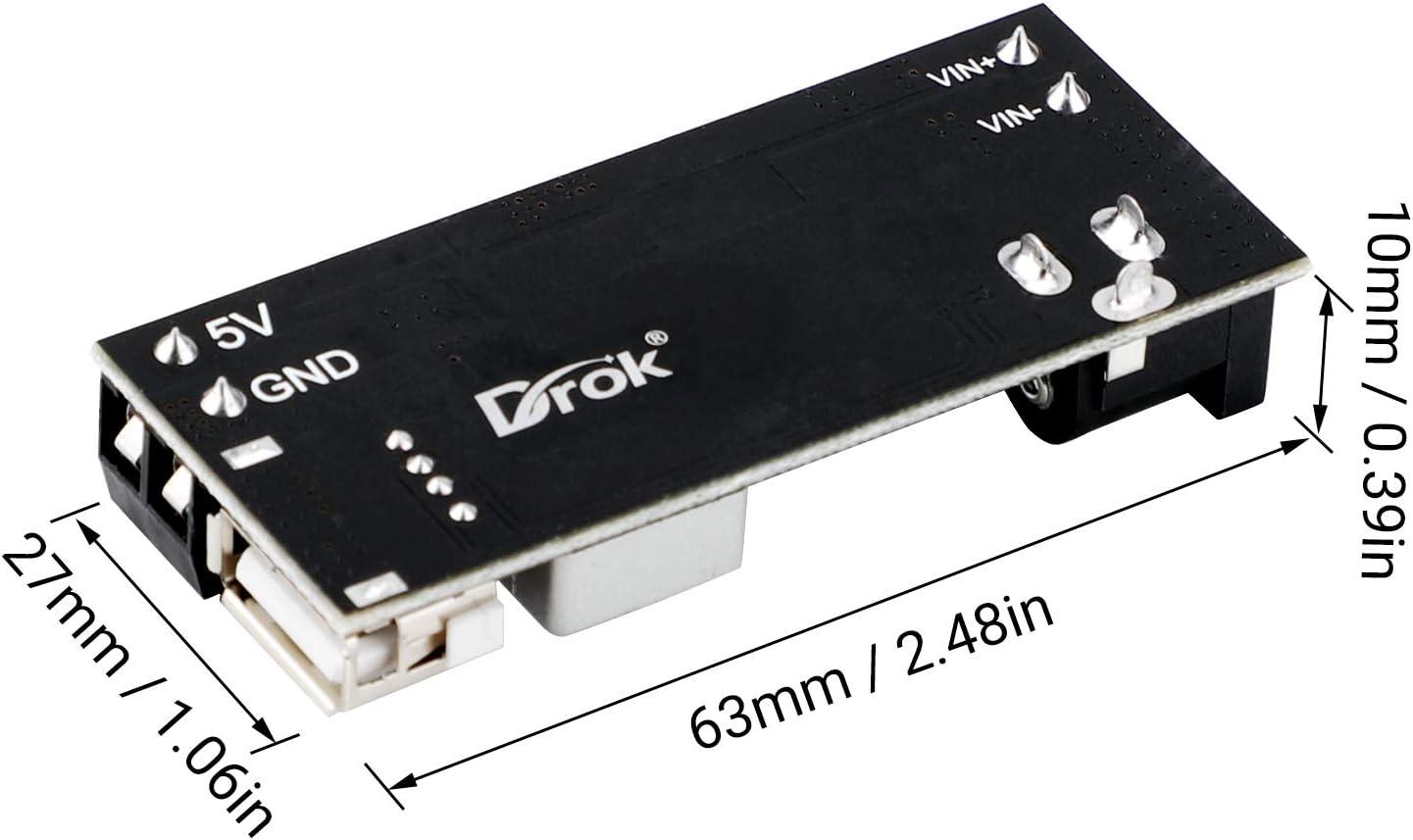

Dimension: 63×27×10mm (L× W × H)
Weight: 22g
Package Includes：

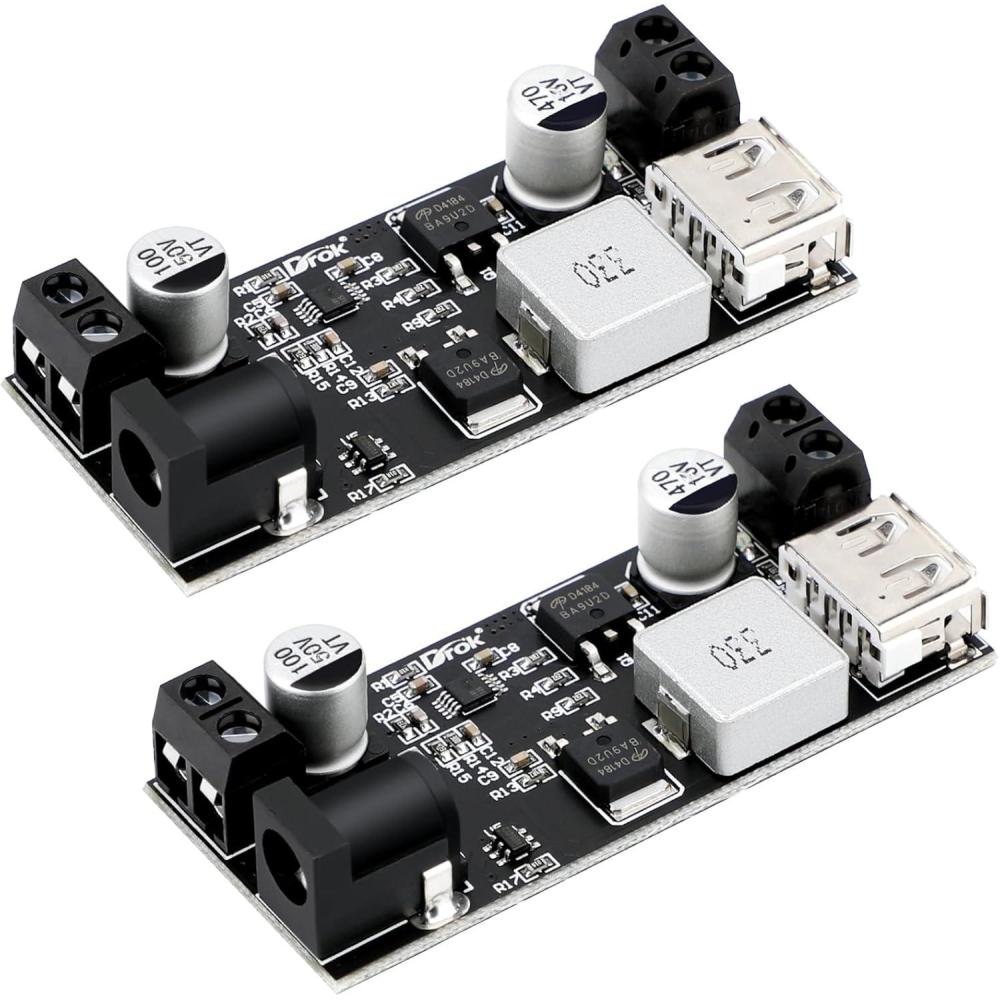

2 X USB DC Buck Converter
