Description
PARAMETER — input voltage DC 11-90V (12V 24V 36V 48V 60V 72V); output voltage DC 5V; output current 6A
APPLICATION — DC 11-90V step down converter. Can be used for car audio, LED display; motor, speaker; auto map navigator; hard disk player; media; electric fan; toy cars; air conditioning; solar energy, etc.
PROTECTION — over-current protection; over-temp protection; input reverse connection protection; short-circuit protection; waterproof; dust-proof; moisture-proof; shock-proof.
CONVERSION EFFICIENCY — over 95% max.
FEATURE — high conversion efficiency, low heat generation; aluminum case, good heat dissipation, high safety.

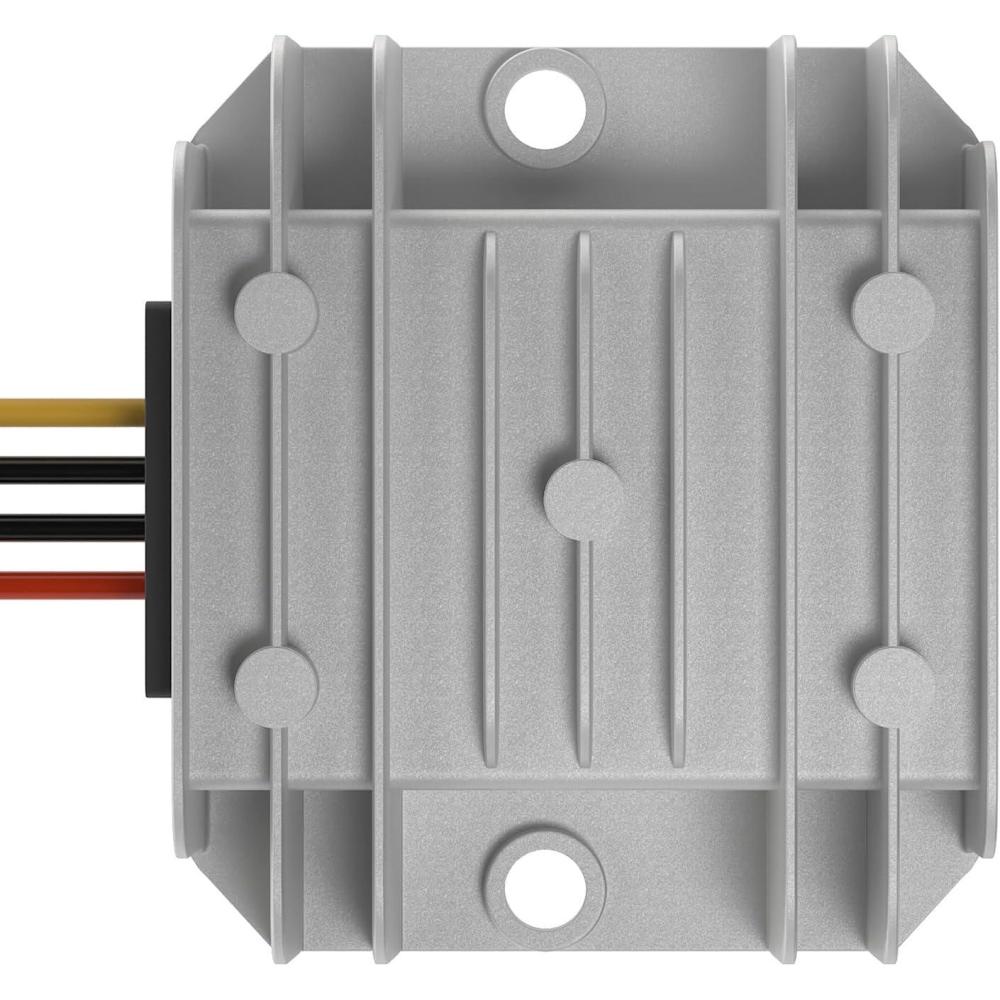

DROK DC/DC Step Down Power Regulator DC 11-90V to 5V 6A Converter

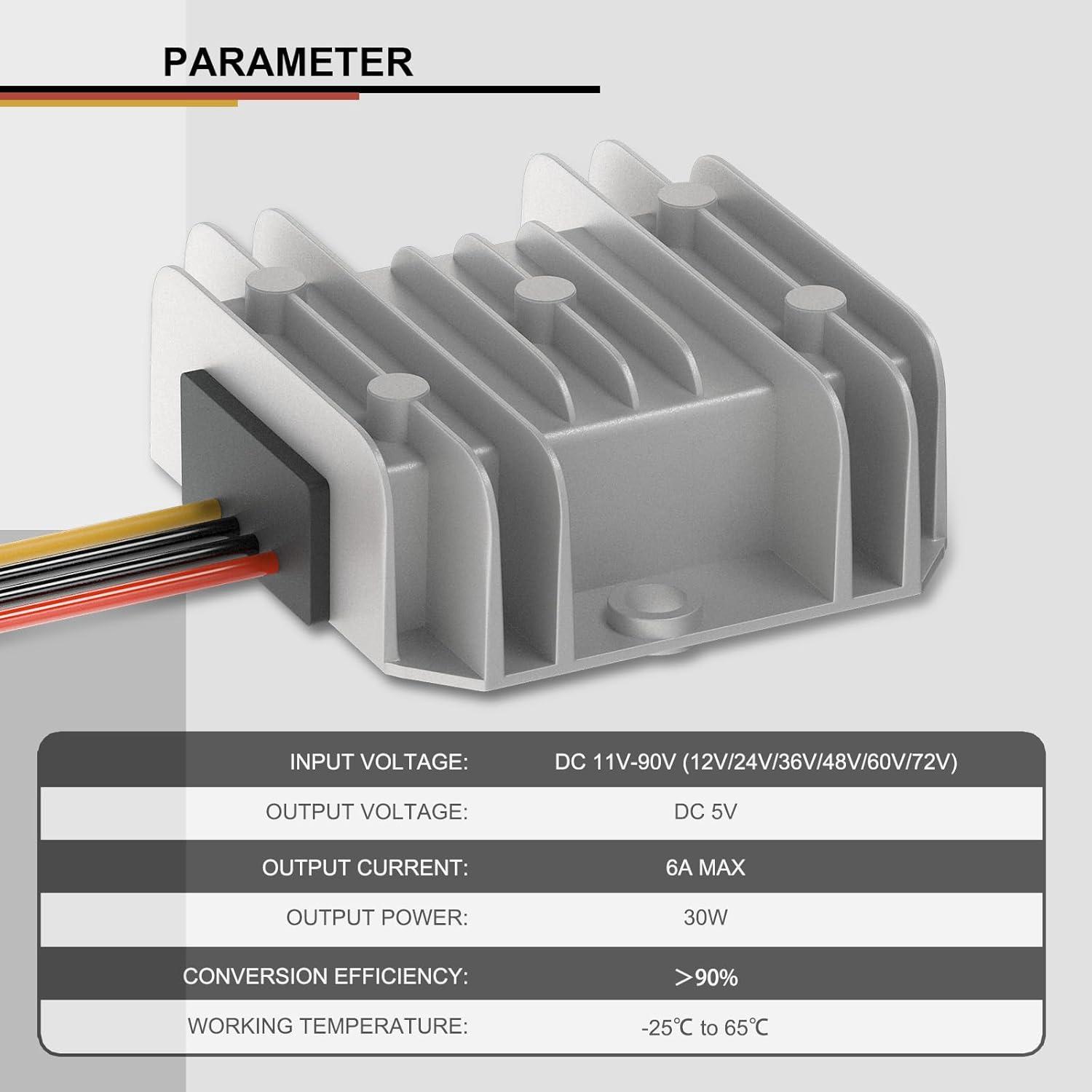

Parameter:
Input voltage: DC 11-90V (12V 24V 36V 48V 60V 72V)
Output voltage: DC 5V
Output current: 6A
Conversion efficiency: over 95% max.
Working temperature: -25℃~80℃

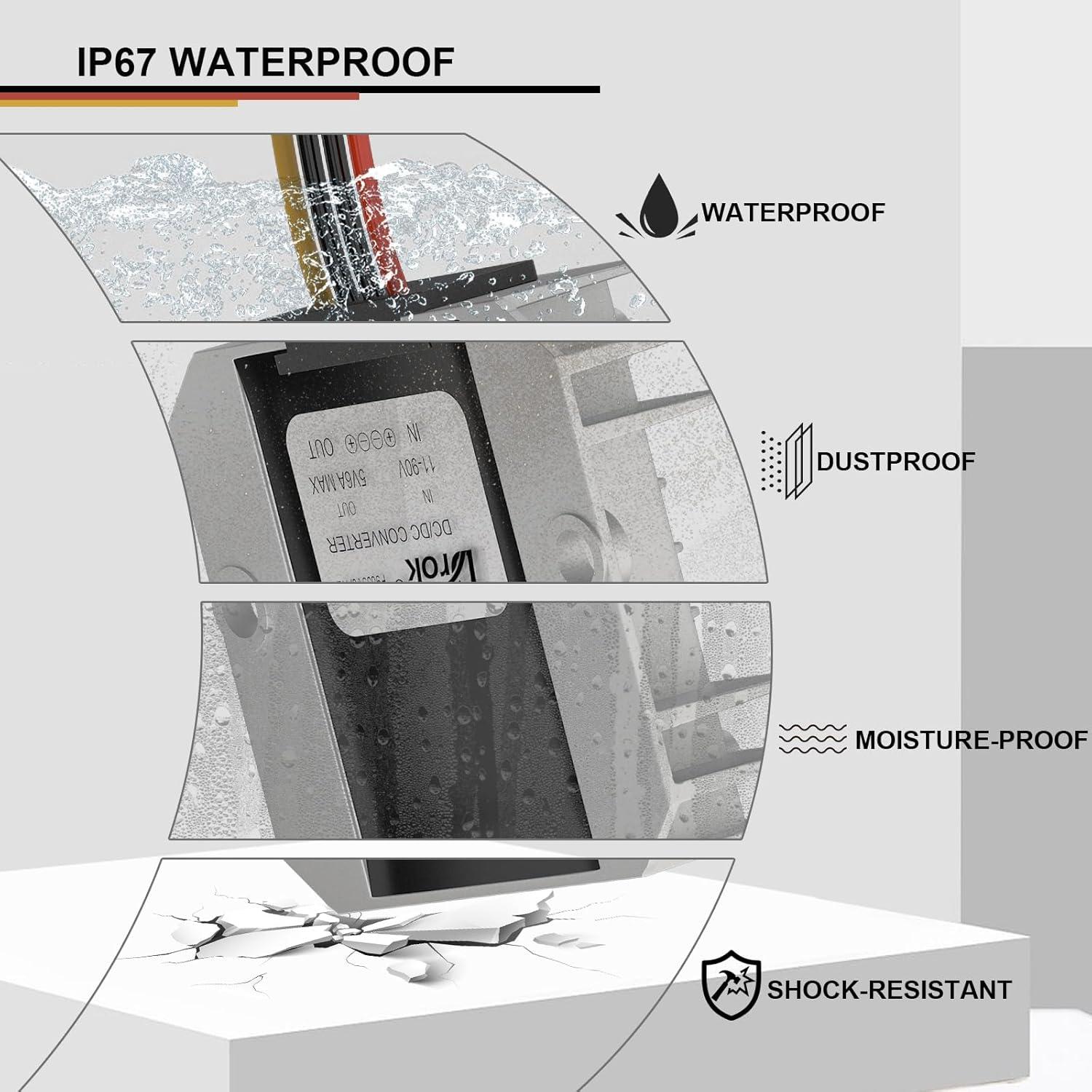

Waterproof grade:IP67
Dimension: 64*57*22mm/2.5*2.2*0.87 inch
Installation cable length: 13-14cm/5.11-5.51 inch
Cooling: natural cooling

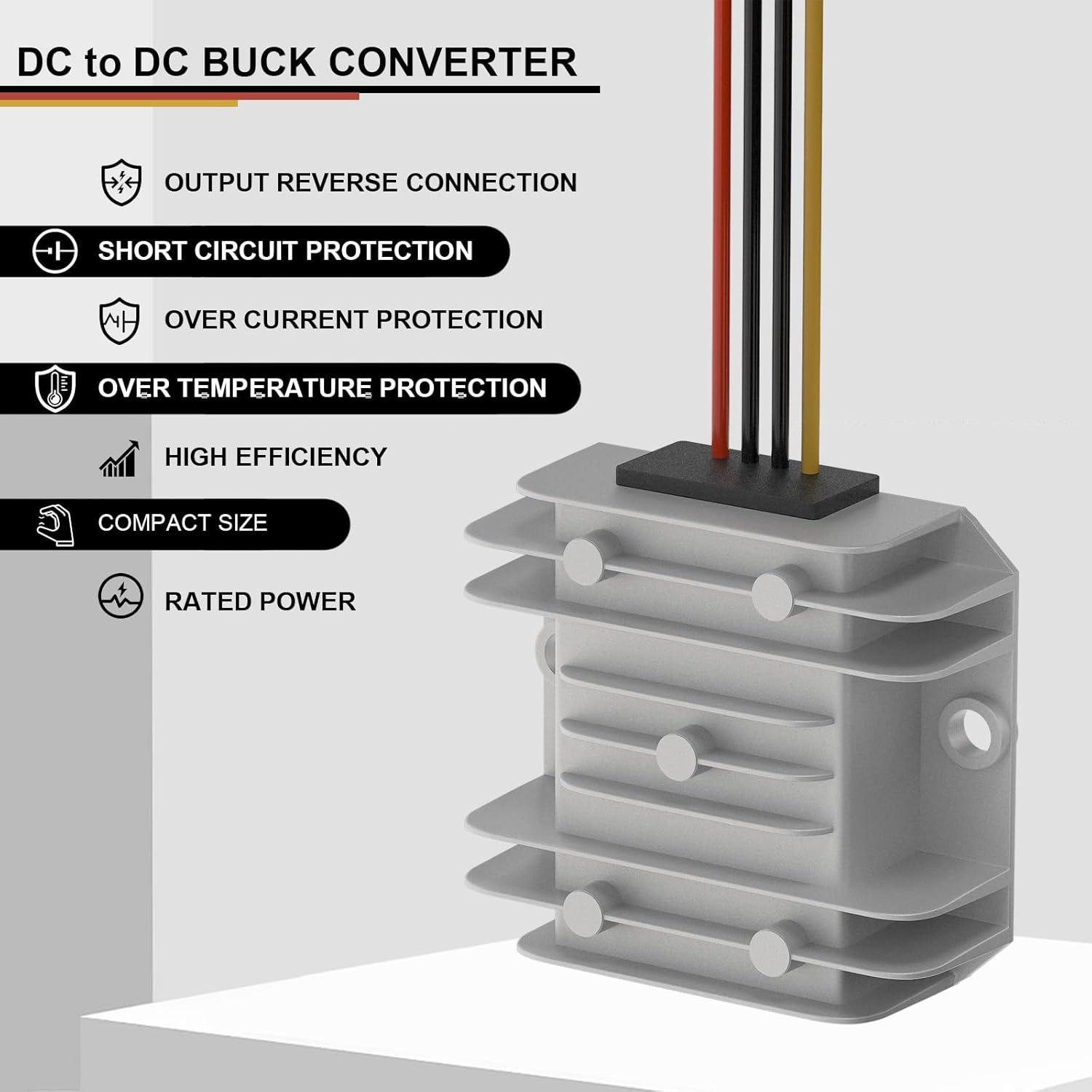

Protection:
Over-current protection;
Over-temp protection;
Input reverse connection protection;
Short-circuit protection

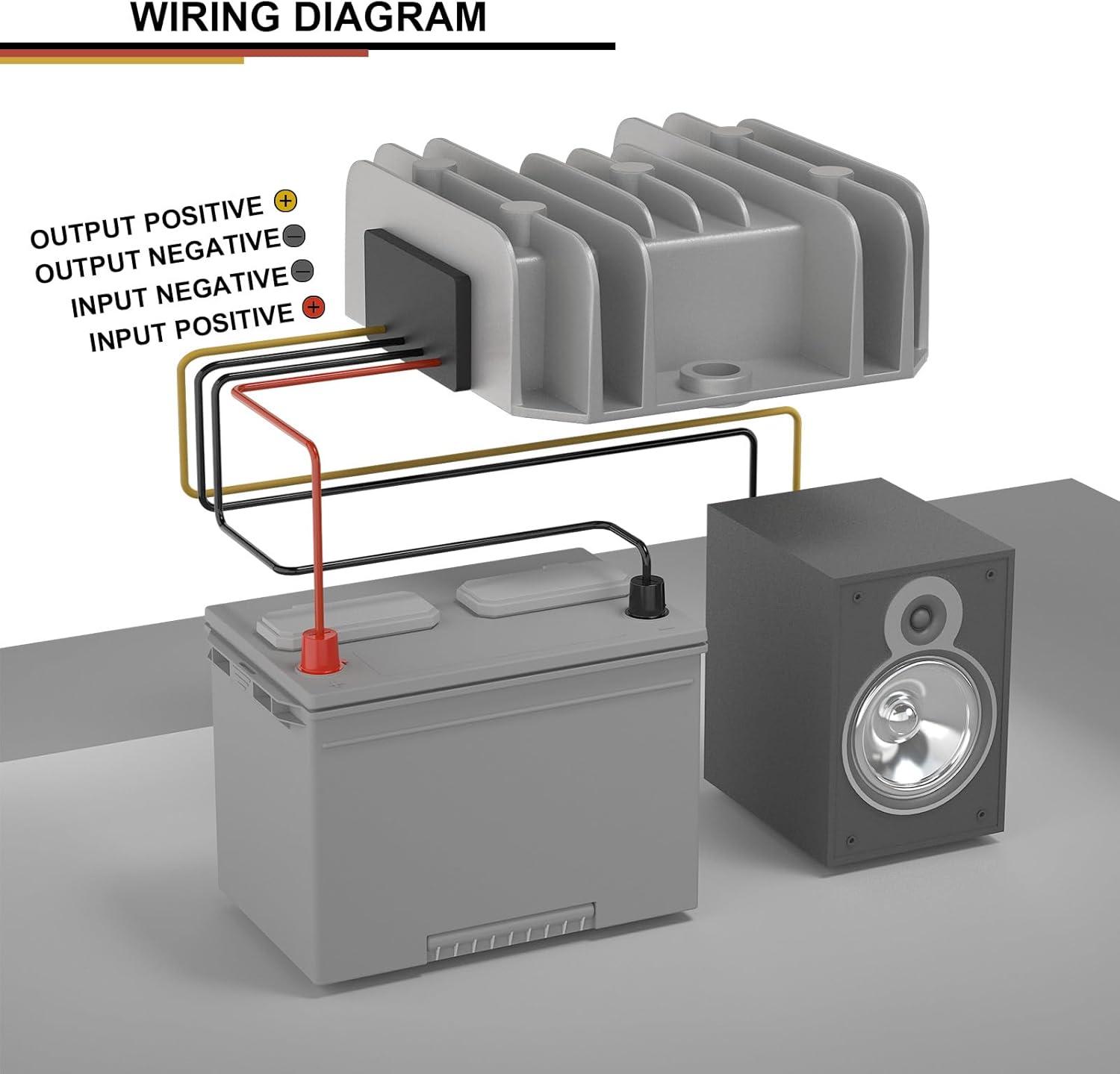

Wiring:
Input:
Red wire: input +
Black wire: input –
Output:
Yellow wire: output +
Black wire: output –
Package Included:
1x Step Down Module
